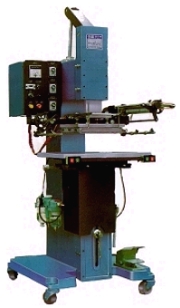

Hot stamping machine /AC-5
Usage°G
1°D
Special for medium area hot stamping and marking, for example: plastic products, sheet etc. optional for auto feeder, beam sensor and automation unit for improving productivity°C

Feature°G
1°D
All-in-one body design with strong FC-25 steel die cast structure°C
2°D
3 timers control system: Press, Delay and Foil feed time can be easily adjusted°C
3°D
70mm stroke can provide more space for higher height of product°C
4°D
Thermal controller can be set from 0 °V 400 ĘJ easily°C
5°D
Well design foil feeding structure is not affected by axis of foil roller and easily for installation°C

Specification°G
Model
AC-5
Maximum Pressure
5000kg
Hot plate
120 °— 180mm/200 °— 270mm
Stroke
70mm
Depth of throat
300mm
Maximum opening
300mm
Operating table
350 °— 540mm
Weight
360kg
Machine size
L °— W °— H = 70 °— 80 °— 150 cm
Package weight
400kg
Package size
L °— W °— H = 95 °— 95 °— 160 cm
